19991103: identical to 19990825, but NPT ensemble

GOAL

To see if the good reproducibility already obtained for the $Zr_{100}Ce^{4+}_{200}Ce^{3+}_{200}O_{900}(V_O^{\cdot \cdot })_{100}$ with the NPT ensemble is obtained also for the zirconium free system $Ce^{4+}_{250}Ce^{3+}_{250}O_{875}(V_O^{\cdot \cdot })_{125}$.

The calculations to be compared are the following:

$Ce^{4+}_{250}Ce^{3+}_{250}O_{875}(V_O^{\cdot \cdot })_{125}$
NVE NPT
19990824 19991029
19990825 19991103
$Zr_{100}Ce^{4+}_{200}Ce^{3+}_{200}O_{900}(V_O^{\cdot \cdot })_{100}$
NVE NPT
19990831 19991020
19990902 19991028

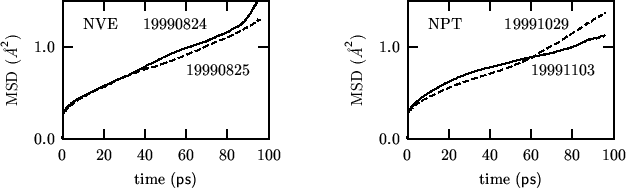

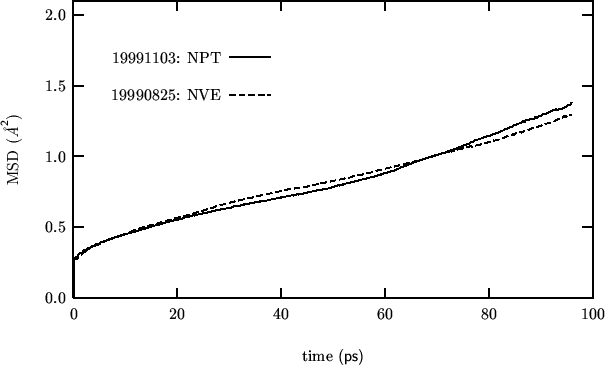

Results

\begin{center}\vbox{\input{19991103-01.pslatex}
}\end{center}

\begin{center}\vbox{\input{19991103-02.pslatex}
}\end{center}
