The
development of ruthenium anticancer drugs

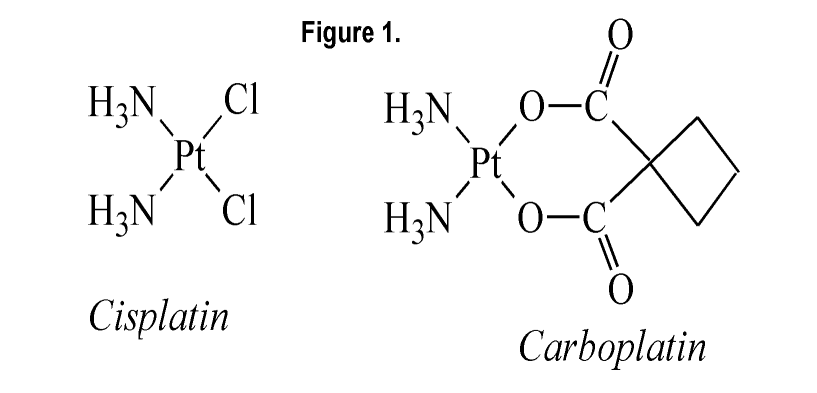

Two Pt(II)
compounds, commercially known as cisplatin and carboplatin (Figure 1),
developed in the early seventies, are currently the most widely used
anticancer agents. Today there is hardly any clinical regimen of
combination
chemotherapy that does not contain either cisplatin
or carboplatin.
Notwithstanding the
widespread applications of platinum anticancer drugs, there is still a
large
need for the development of novel metal-based compounds with
unprecedented
features.
The search for “non-classical” metal
antitumor drugs has since long stimulated investigations into the field
of non-platinum metal drugs. Non-platinum
active compounds are likely to have mechanism of action,
biodistribution and
toxicity which are different from those of platinum drugs and might
therefore
be active against human malignancies that are resistant, or have
acquired
resistance, to them. They might also show a reduced host toxicity.
Ruthenium
seems to be the most promising among the several metals investigated.
Since many
years our group has actively worked in the
field of inorganic antitumor drugs and has developed several Ru(II) and
Ru(III)
complexes with coordinated dimethylsulfoxide (dmso), which were shown
to
possess good antitumor and, above all, antimetastatic properties
against animal

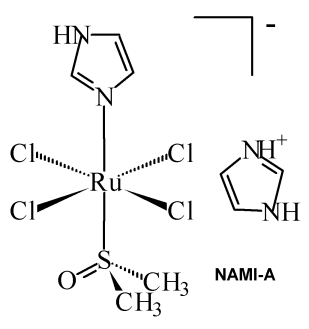

models. Among these compounds a Ru(III) complex named NAMI-A,
[ImH][trans-RuCl4(dmso-S)(Im)]
(Im = imidazole) (Figure 2),
was selected because of its very good antimetastatic activity and on
October
1999 it was introduced into phase I clinical trials at the Netherland
Cancer

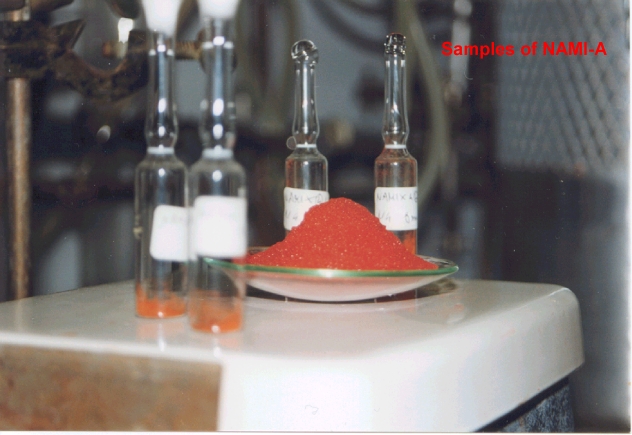

Institute of Amsterdam (NL). NAMI-A
(Figure 3) is one of the
very few non-platinum antitumor drugs, and the first ruthenium-based
compound,
to reach clinical phase trials.
Phase I
clinical trials have been completed in fall
2002 and we expect to start phase II trials soon.
It is important to stress that metastases of solid tumors represent the main reason of failure in cancer therapy. In fact, while surgery and/or radiotherapy may successfully cure the primary lesions, many human tumors develop distant metastases that bring almost invariably to death. Because of the scattered location of metastases, drug therapy appears to be the best choice and, from the therapeutic standpoint, the development of new compounds endowed with a specific antimetastatic activity is a topic of paramount importance.

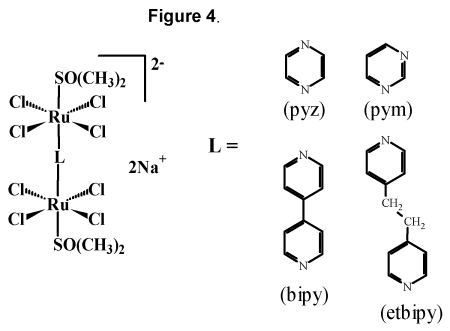

We recently developed
new dimeric Ru(III) compounds of formula Na2[{trans-RuCl4(dmso-S)}2(m-L)], in
which L = heterocyclic bridging N-ligand (Figure
4). In such dimers, the coordinative environment of
each Ru(III) nucleus is very similar to that of NAMI-A.
The chemical behavior of the new Ru(III) dimers in
physiological solution was also investigated; preliminary in vivo
results
showed that some of them have an antimetastatic activity comparable to
that of NAMI-A at dosages that are 3.5 times
lower in terms of moles of Ru.
The interactions of the
active Ru complexes with their
likely biological targets, i.e. DNA and proteins (in particular
transferrin and
albumin) were investigated in collaboration with other groups. In
general, Ru(III) complexes bind DNA but
much more weakly than platinum complexes. Thus the structural and
conformational modifications produced on the DNA double helix are
significantly
smaller. Under physiological conditions, antitumor Ru(III) complexes
bind
tightly plasma proteins (albumin and transferrin), with a marked
preference for
surface imidazole groups; thus, very likely, protein binding of
ruthenium(III)
complexes has a large impact on the biodistribution, the
pharmacokinetics and
the mechanism of action of these experimental drugs.
In vitro and in
vivo pharmacological experiments have shown that NAMI-A
and other active ruthenium compounds are scarcely cytotoxic,
suggesting that their mechanism of action is very likely different from
that of
platinum drugs and might be unrelated to interactions with DNA. One
possibility
for explaining the activity of NAMI-A against disseminated tumors is
that it
interferes with NO methabolism in vivo. Nitric oxide is known to play
an
important role in many biological functions, and recently it was
demonstrated
to be involved as mediator in one tumor-induced angiogenic process,
which is a
key step in the formation of metastases. NO is also known to interact
in vivo
with iron proteins, thus ruthenium action might also occurr through an
iron-mimicking mechanism.
Within this general framework
we investigated the reactivity of basic Ru(II)- and
Ru(III)-chloride-dmso
complexes and of NAMI-A towards NO with the goal of producing
spectroscopically
and structurally well characterized models. These will be used as
reference
compounds in subsequent biomimetic studies in physiological conditions.

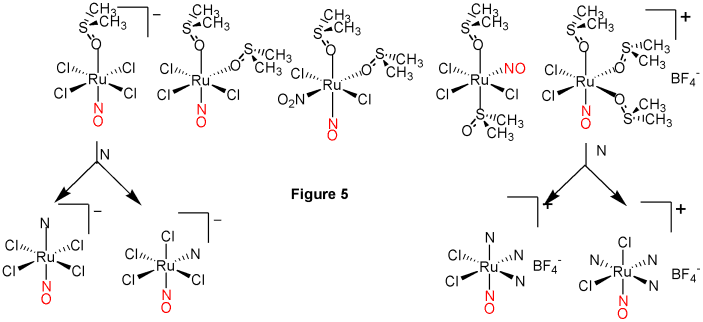

A
summary of our results in this field (refs 22, 23), including the
reactivity of
some of the new Ru-dmso nitrosyls towards heterocyclic nitrogen ligands
(N) is
reported in Figure 5. The spectroscopic and
X-ray
structural features for all the new complexes are consistent with the
{Ru(NO)}6
formulation, that is a diamagnetic Ru(II) nucleus bound to NO+.
Electrochemical measurements on the Ru-NO complexes showed that they
are all
redox active in DMF solutions and the site of reduction is the NO+
moiety. The reduced complexes are not stable and rapidly release the NO· radical.
Moreover,
spectroscopic studies indicated that in
physiological conditions the active Ru(III) compounds, both monomers
and
dimers, are easily and quantitatively reduced to Ru(II) species by
stoichiometric amounts of biological reducing agents, such as ascorbic
acid,
cysteine and glutathion. This important feature suggests that NAMI-A and the Ru(III)-dmso compounds
might indeed be reduced also in vivo to generate Ru(II) active species.
1) E. Alessio,
E. Zangrando, R. Roppa, L. G. Marzilli «Crystals containing
conformers: a rare case in which a solid closely reflects a solution
equilibrium mixture.» Inorg.
Chem. 1998, 37,
2458-2463.
2) G. Mestroni, E. Alessio,
A. Sessanta o Santi, S. Geremia,
A. Bergamo, G. Sava, A. Boccarelli, A.
Schettino, M. Coluccia
«Rhodium(III) analogs of antitumor active
ruthenium(III) compounds. The
crystal structure of [ImH][trans-RhCl4(Im)2]
(Im = imidazole).» Inorg. Chim. Acta,
1998, 273, 62-71.
3) L. G.
Marzilli, P. A. Marzilli, E. Alessio «Complexes of lopsided
N-donor heterocyclic biologands: has the electrostatic effect of the N2CH
proton been overlooked in metallobiochemistry?» Pure &
Appl. Chem.
1998, 70, 961-968.
4) G. Sava, I Capozzi, K.
Clerici, G. Gagliardi, E. Alessio,
G. Mestroni «Pharmacological control of lung metastases of solid
tumors by a
novel ruthenium complex.» Clin. Exp.
Metastasis 1998, 16, 371-379.
5) G. Sava, R.
Gagliardi, M. Cocchietto, K. Clerici, I Capozzi, M. Marrella,
E. Alessio, G. Mestroni, R. Milanino «Comparison of the effects
of the
antimetastatic compound ImH[trans-RuCl4(DMSO)(Im)]
(NAMI-A) on the arthritic rat and on Mca mammary carcinoma in
mice.» Pathol.
Oncol. Res. 1998, 4, 30-36.
6) S. Geremia,
S. Mestroni, M. Calligaris, E. Alessio «The
first example of a double bridged
diruthenium(II) complex containing the rare bridging S,O bidentate
dimethyl
sulfoxide ligand which defines a stable five-membered
ring.» J. Chem. Soc., Dalton Trans. 1998,
2447-2448.
7) G. Sava, K.
Clerici, I Capozzi, M. Cocchietto, R. Gagliardi, E.
Alessio, G. Mestroni, A. Perbellini
«Reduction of lung metastasis by ImH[trans-RuCl4(DMSO)(Im)]:
mechanism of the selective action investigated on mouse tumors.» Anti-Cancer Drugs 1999, 10,
129-138.
8) A. Bergamo,
R. Gagliardi, V. Scarcia, A. Furlani, E. Alessio, G.
Mestroni, G. Sava «In
vitro cell cycle arrest,
in vivo action on solid metastasizing tumors and host toxicity of
the
antimetastatic drug NAMI-A and of cisplatin.»
J. Parmacol. Exp. Ther. 1999, 298(1), 559-564.
9) G. Sava, E.
Alessio, A. Bergamo, G. Mestroni «Sulfoxide ruthenium
complexes: non toxic tools for the selective treatment of solid tumour
metastases.» Topics in Biological
Inorganic Chemistry, Volume 1 “Metallo-pharmaceuticals”,
M. J. Clarke and P. J. Sadler eds., Springer, Berlin, 1999,
pp. 143-169.
10) E. Iengo,
G. Mestroni, S. Geremia, M. Calligaris, E. Alessio
«Novel Ru(III) dimers [Na]2{[trans-RuCl4(Me2SO-S)]2(m-L)} and {[mer,cis-RuCl3(Me2SO-S)(Me2SO-O)]2(m-L)} (L =
bridging heterocyclic N-donor ligand) closely related to the
antimetastatic
complex Na[trans-RuCl4(Me2SO-S)(Him)].» J. Chem. Soc.,
Dalton Trans. 1999, 3361-3371.
11)
G. Sava, R. Gagliardi, A. Bergamo, E. Alessio, G. Mestroni
«Treatment of metastases of solid mouse
tumours by NAMI-A: comparison with cisplatin, cyclophosphamide and
dacarbazine.» Anticancer Res. 1999,
19, 969-972.
12) E. Alessio,
E. Iengo, S. Zorzet, A. Bergamo, M. Coluccia, A. Boccarelli,
G. Sava «Antimetastatic properties
and
DNA interactions of the novel class of dimeric Ru(III) compounds [Na]2{trans-RuCl4(Me2SO)]2(m-L)} (L =
ditopic, non-chelating aromatic N-ligand). A
preliminary investigation.» J. Inorg.
Biochem. 2000, 79, 157-161.
13) E. Alessio, E.
Zangrando, E. Iengo, M. Macchi, P. A. Marzilli, L. G.
Marzilli «Understanding Orientation
and
Dynamic Motion of Planar Heterocyclic N-Donor Ligands by Exploiting the
Symmetry Properties of Mixed-Ligand m-oxo Rhenium(V)
Dimers [ReOCl2(L)(L')]-O-[ReOCl2(L)(L')]:
a Combined X-ray Structural and Dynamic NMR Investigation.» Inorg.
Chem. 2000, 39, 294-303.
14) L. Messori,
P. Orioli, D. Vullo, E. Alessio, E. Iengo «A
spectroscopic study of the reaction of
NAMI, a novel ruthenium(III) anti-neoplastic complex, with bovine serum
albumin. » Eur. J. Biochem. 2000, 267,
1206-1213.
15) E. Gallori, C. Vettori,
E. Alessio, F. Gonzalez-Vilchez, R.
Vilaplana, P. Orioli, A. Casini, L. Messori
«DNA as a possible target for antitumor Ruthenium(III)
complexes.» Arch.
Biochem. Biophys. 2000,
376(1), 156-162.
16) M. Cocchietto, G.
Salerno, E. Alessio, G. Mestroni, G. Sava
«Fate of the antimetastatic ruthenium complex ImH[trans-RuCl4(DMSO)Im] after acute i.v.
treatment in
mice.» Anticancer Res., 2000, 20, 197-200.
17) E. Alessio, E. Iengo, E.
Zangrando, S. Geremia, P. A. Marzilli,
M. Calligaris «Orientation
and Restricted Rotation of Lopsided N-donor Heterocyclic Bioligands in
Octahedral Ruthenium Complexes.» Eur. J. Inorg. Chem. 2000,
2207-2219.
18) S. Zorzet, A. Bergamo, M.
Cocchietto, A. Sorc, B.
Gava, E. Alessio, E. Iengo, G. Sava
«Lack of in vitro cytotoxicity, associated to increased
G2-M cell
fraction and inhibition of matrigel invasion, may predict in
vivo-selective
antimetastasis activity of ruthenium complexes.» J. Pharmacol. Expl. Ther., 2000,
295, 927-933.
19) B. Serli, E.
Iengo, T. Gianferrara, E. Zangrando, E. Alessio «Novel
unsymmetrical Ru(iii)
and mixed-valence Ru(iii)/Ru(ii) dinuclear compounds
related to the
antimetastatic Ru(iii)
drug nami-a.» Metal Based Drugs, 2001,
8, 9-18.
20) J. Malina,·O.
Novákova,·B. K.
Keppler, E. Alessio, V. Brabec «Biophysical
analysis of natural,
double-helical DNA modified by anticancer heterocyclic complexes of
ruthenium(III) in cell-free media.» J.
Biol. Inorg. Chem., 2001, 6,
435-445.
21) G. Sava, A.
Bergamo, S. Zorzet, B. Gava, C. Casarsa, M. Cocchietto, A. Furlani, V.
Scarcia,
B. Serli, E. Iengo, E. Alessio G. Mestroni “Influence of chemical
stability on the activity of the antimetastasis ruthenium compound
NAMI-A.” Eur.
J. Cancer, 2002, 38, 427-435.
23) B. Serli, E.
Zangrando, E. Iengo, G. Mestroni, L. Yellowlees, E. Alessio “Synthesis,
Structural, Spectroscopic, and Electrochemical Characterization of
Novel
Ruthenium-Dimethylsulfoxide Nitrosyls.” Inorg. Chem., 2002, 41, 4033 - 4043.
24) I. Turel, M.
Pecanac, A. Golobic, E. Alessio, B. Serli “Novel Ru(III)-DMSO complexes
of the
antiherpes drug acyclovir.” Eur. J. Inorg. Chem., 2002, 1928-1931.
25) A. Bergamo, B. Gava, E.
Alessio, G. Mestroni, B. Serli, M. Cocchietto, S. Zorzet, G. Sava
“Ruthenium-based NAMI-A type complexes with in vivo selective
metastasis reduction and in vitro invasion inhibition unrelated to cell
cytotoxicity.”
Int. J. Oncol. , 2002, 21, 4033 - 4043.
26) B. Serli, E. Zangrando, T.
Gianferrara, L. Yellowlees, E. Alessio
“Coordination and release of NO by ruthenium-dimethylsulfoxide
complexes-implications for anti-metastases activity.”
Coord. Chem.
Rev. , 2003, 245, 73 - 83.
27) E. Zangrando, B. Serli, L.
Yellowlees, E. Alessio “The first examples of four and five O-bonded
dmso ligands on a ruthenium centre.”
Dalton Trans. , 2003, , 4391 - 4392.
28) A. Bergamo, G. Stocco, B.
Gava, M. Cocchietto, E. Alessio, B. Serli, E. Iengo, G. Sava
“Distinct effects of dinuclear ruthenium(III) complexes on cell
proliferation and on cell cycle regulation in human and murine tumor
cell lines.”
J. Pharmacol.
Exp. Ther., 2003, 305, 725 - 732.
29) A. Bergamo, G. Stocco, C.
Casarsa, M. Cocchietto, E. Alessio, B. Serli, S. Zorzet, G. Sava
“Reduction of in vivo lung metastases by dinuclear ruthenium complexes
is coupled to inhibition of in vitro humour invasion.”
Int. J. Oncol. , 2004, 24, 373 - 379.
30) I. Turel, M. Pečanac, A.
Golobič, E. Alessio, B. Serli, A. Bergamo, G. Sava “Solution, solid
state and biological characterization of ruthenium(III)-DMSO complexes
with purine base derivatives.”
J. Inorg.
Biochem. , 2004, 98, 393 - 401.
31) E. Alessio, G. Mestroni, A.
Bergamo, G. Sava “Ruthenium Anticancer Drugs.” in "Metal Ions and Their
Complexes in Medication and in Cancer Diagnosis and Therapy", Vol. 42
of Met. Ions Biol. Syst., A. Sigel and H. Sigel, eds., M. Dekker: New
York
Int. J. Oncol. , 2004, , 323 - 351.
32) M. Bacac, A. C. G. Hotze, K.
van der Schilden, J. G. Haasnoot, S. Pacor, E. Alessio, G. Sava, J.
Reedijk “The hydrolysis of the anti-cancer ruthenium complex NAMI-A
affects its DNA binding and antimetastatic activity: an NMR
evaluation.”
J. Inorg.
Biochem. , 2004, 98, 402 - 412.
33) A. H. Velders, A. Bergamo,
E. Alessio, E. Zangrando, J. G. Haasnoot, C. Casarsa, M. Cocchietto, S.
Zorzet, G. Sava
“Synthesis and chemical-pharmacological characterization of the
antimetastatic NAMI-A-type Ru(III) complexes (Hdmtp)[trans-RuCl4(dmso-S)(dmtp)],(Na)[trans-RuCl4(dmso-S)(dmtp)]
and [mer-RuCl3(H2O)(dmso-S)(dmtp)]
(dmtp=5,7-dimethyl[1,2,4]triazolo[1,5-a]pyrimidine).” J. Med. Chem. , 2004, 47, 1110 - 1121.
03/may/2004 - Crevatin rcrevatin@units.it
