19990817: a third $Zr_{250}Ce^{4+}_{50}Ce^{3+}_{200}O_{900}(V^{\cdot \cdot }_O)_{100}$ fully comparable with 19990814 and 19990815, with a different starting configuration

GOAL

Change starting configuration, but keep all the rest unchanged with respect to 19990814 (33) and 19990815 (34), to see oxygen diffusion coefficient reproducibility.

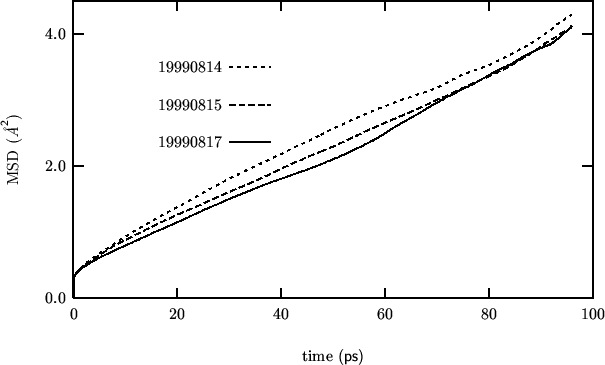

Results

\begin{center}\vbox{\input{19990817-01.pslatex} }\end{center}


\begin{threeparttable} \begin{tabular}{lD{.}{.}{12}D{.}{.}{12}D{.}{.}{12}l} &\mu... ...445193 &5.84332217 & 6.05408015 &{$cm^2/s$}\\ \end{tabular}\end{threeparttable}
