19990818: identical to 19990815, but run at $1273.0\;K$, to get an activation energy for oxygen migration

GOAL

19990814, 19990815 and 19990817 give quite reproducible oxygen diffusion coefficients. Now I keep the starting configuration fixed and change the temperature. Since 19990815 (34) seems to give the most well behaved MSD plot, we'll keep that as the starting configuration while changing the temperature.

Results

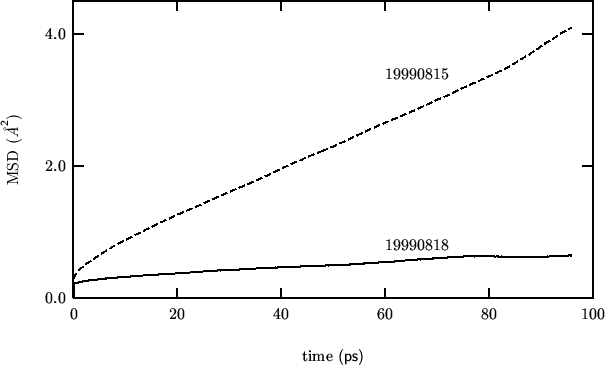

\begin{center}\vbox{\input{19990818-01.pslatex} }\end{center}


\begin{threeparttable} \begin{tabular}{lD{.}{.}{6}D{.}{.}{12}D{.}{.}{12}D{.}{.}{... ....0 & 0.548106183 & 0.035059933 & 5.84332217\\ \end{tabular}\end{threeparttable}
